(ship from Czech Republic )Autel MaxiIM IM508S  Programmer/ Multi-language

(ship from Czech Republic )Autel MaxiIM IM508S Programmer/ Multi-language

US$ 939.51 US$ 949.00
ship to Europe ship to America other country
Customized Requirements
Stock ( 29999997 )
Free Shipping
Looking for tech support? Please contact  sales manager
or Whatsapp: +86-15889291896 or

Copy and share this link on social network or send it to your friends

Adding to cart succeed
(ship from Czech Republic )Autel MaxiIM IM508S Programmer/ Multi-language
Subtotal: US$ 0
View My Cart
    • (ship from Czech Republic)Autel MaxiIM IM508S Advanced Key Programming,

    Autel MaxiIM IM508S Advanced Key Programming,2023 Version IM 508S,2 Year free update, Upgrade of IM508

    Product Description

    Autel MaxiIM IM508S Key Programming Tool with XP200 Programmer All System Diagnostics Get Extra OTOFIX Smart Key and One year Update

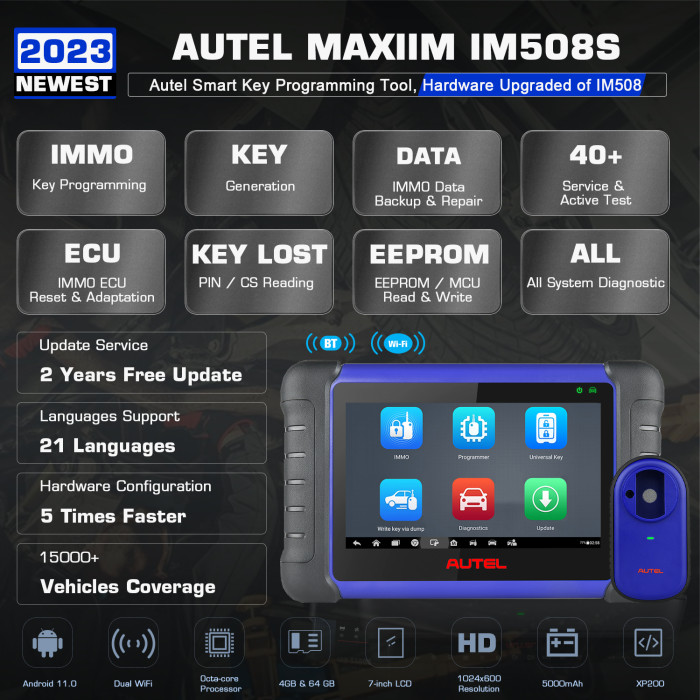

    Autel MaxiIM IM508S Key Programming Tool
    MaxiIM IM508S is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface.
    Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508S provides you with superior special functions. IM508S is the perfect solution for shopkeepers and technicians who demand affordable and powerful IMMO and diagnostic services.
    Product Highlights:
    Total 2 years free update (1 Year Free Software Update and extra 1 year free software update)
    Get Extra OTOFIX Smart Key
    Powerful RK3566 processor
    7” 1024x600 LCD capacitive touchscreen
    Internal reliable 64GB Memory
    Android Operating System for fast boot-up and multitasking
    Powerful combination of key programming/all system diagnostics/advanced maintenance services
    Smart Mode for guided and automated key learning
    Expert Mode for advanced key learning
    Read PIN/CS (all key lost) , key generation, key learning, remote learning
    IMMO ECU reset/adaptation, refresh/coding
    Transponder read/write, EEPROM/MCU read/write
    Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
    Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
    NEW! Support active test and complete special functions
    Product Functions:
    IMMO & Key Fob Programming for DIYers and Locksmiths
    If you want to do something for IMMO systems or car keys, Autel IM508S scanner with XP200 key programmer can help you with the following: read & write to Immobilizer/Engine/EEPROM/MCU; reset/code/backup IMMO ECU; read PIN (Add Key/All Key L~st); key generation/key learning/remote learning, etc. Smart Mode will provide you with guided and automated key learning functions, step by step, save you much trouble! Note: Functions above vary by cars.
    The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.
    Bi-Directional Control/ Active Test
    What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Key Programming tool IM508S can perform real active tests that can send commands to the vehicle's ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal. Please check compatibility.
    OE-level Diagnostic Capability, Same as MK808
    Busy for a long time but can't find what's wrong with the car? Take it easy! Autel IM508S scanner, equipped with the same diagnostic capability as MK808, can scan all available car systems on 80+ US, EU and Asian car makes to read & clear DTCs, view live data, freeze frame data, and ECU info, perform active tests and compatible with MV108(not included). With just a few simple clicks, you can quickly locate the issues to win more time and money.
    34 Kinds of Maintenance Services, Everything for you.
    Oil reset, EPB, TPMS, BMS, brake bleed, aftertreatment, injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, A/F setting, Automatic Start/Stop, electronic water pump start, EGR, FRM reset, transport mode, HV battery, ACC, A/C, rain/light sensor.
    How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 28+ services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Functions vary by vehicle, please send VIN to us to check compatibility before order.
    Smart Mode–accesses to a function menu where each function is configured as a smart guide system.
    Expert Mode–accesses to a function menu where each function is separated from each other.
    The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
    The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

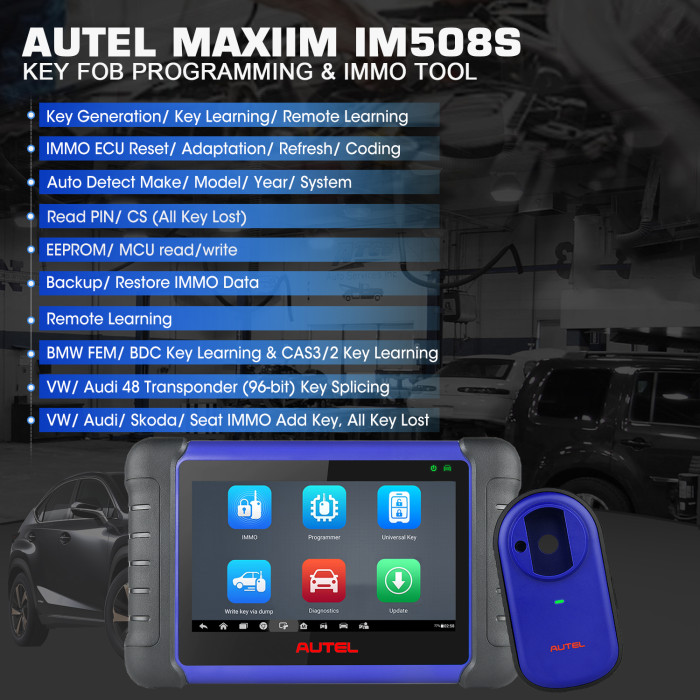

    IMMO & Key Programming :
    1.Read PIN/CS (AII key Lost)
    2.Key Generation
    3.Key Learning/Remote Learning
    4.Backup/Restore IMMO Data
    5.IMMO ECU Reset/Adaptation,Refresh/Coding
    6.BMW FEM/BDC Key Learning and ECU Adaptation
    7.VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More
    Autel MaxiIM IM508S Function List:
    All Systems Diagnostics
    AutoVIN / AutoScan
    Read / Erase Codes
    View, Record, Playback Live Data
    View Freeze Frame Data
    Shop and Data Manager Applications
    Key Read / Write
    EEPROM / MCU Read / Write
    Read PIN / CS (All Key Lost)
    Key Generation
    Key Learning
    Remote Learning
    Backup / Restore IMMO Data
    IMMO ECU Reset / Adaptation
    IMMO ECU Refresh / Coding
    BMW FEM / BDC Key Learning and ECU Adaptation
    VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More
    Product Specifications:

    Operating System

    Android 11


    Rockchip RK3566 Quad core Processor:4x 1.8GHz(A55)




    7-inch LCD capacitive touchscreen with 1024x600 resolution


    Mini USB 2.0
    Micro SD card slot(supports up to 64GB)


    Ambient light sensor for brightness auto changing

    Power and Battery

    3.7 V/5000 mAh lithium-polymer battery
    Charges via 5 VDC power supply

    Tested Battery Life

    Around 4.5 hours of continuous use

    Battery Charging Input


    Power Consumption

    500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V

    Operating Temp

    0 to 50°C (32 to 122°F)

    Storage Temp

    -20 to 60°C (-4 to 140°F)

    Operating Humidity

    5%-95% non-condensing

    Net Weight


    Supported Automotive Protocols

    ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

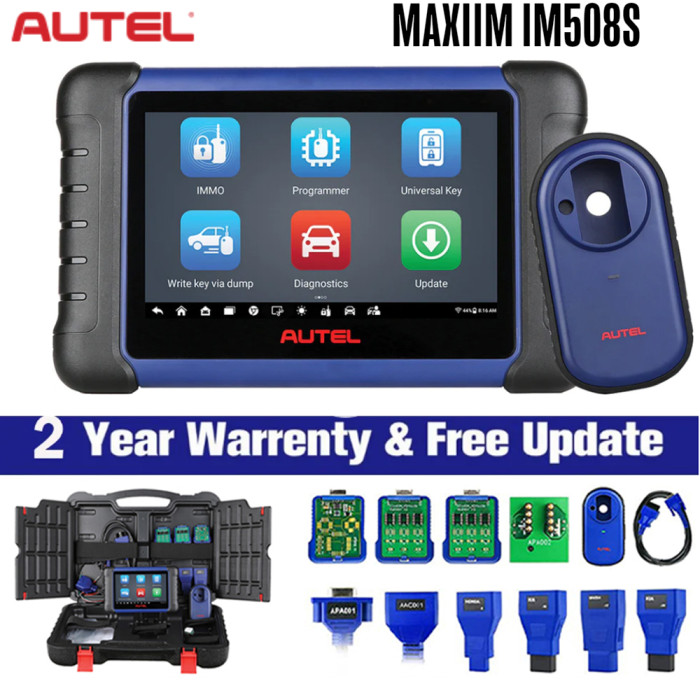

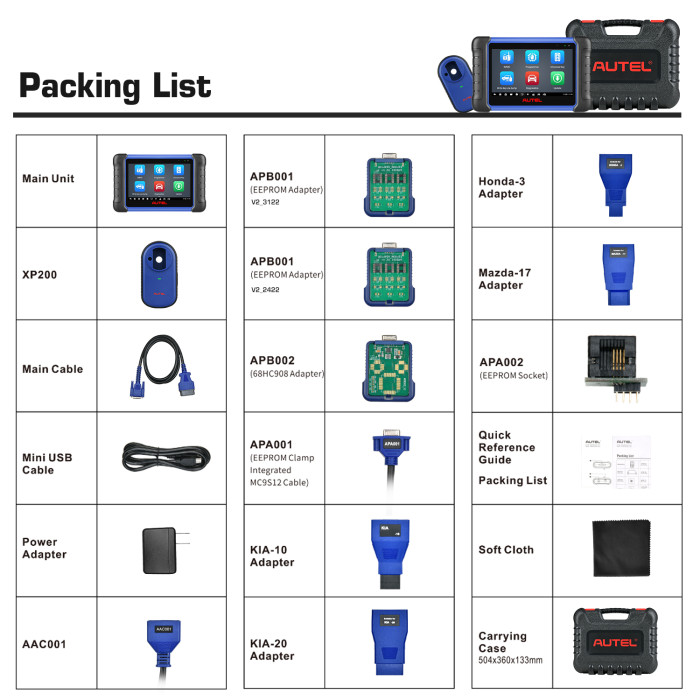

    Package Includes:
    1PC x MaxiIM IM508S Tablet
    1PC x XP200 Key Programmer
    1PC x Main Cable
    1PC x Mini USB Cable
    1PC x USB External Power Adapter
    1PC x APB001 (EEPROM Adapter)
    1PC x APB002 (68HC908 Adapter)
    1PC x APA002 (EEPROM Socket)
    1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)
    1PC x AAC001 – MED17 Cable
    1PC x KIA-10 Adaptor
    1PC x KIA-20 Adaptor
    1PC x Mazda-17 Adaptor
    1PC x Honda-3 Adaptor
    1PC x Carrying Case
    1PC x Quick reference guide

    Autel MaxiIM IM508S:

    MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu.


    Language Support List:

    English, Spanish, French, German, Russian, Japanese, Korean, Polish, Portuguese, Swedish, Persian, Turkish, Thai, Vietnamese, Hebrew, Arabic, Indonesian, Italian, Dutch


    (Send Serial Number to the Seller to Activate Language After receiving the goods)


    Key Programming Function:

    ● Smart Mode and Expert Mode for Newcomer and Mechanic
    ● PIN/ CS Reading (All Key Lost)
    ● Key Generation/ Key Learning/ Remote Learning
    ● Key Read & Write
    ● MCU Read/ Write & EEPROM Read Write
    ● Backup / Repair IMMO Data
    ● IMMO ECU Reset/ Adaptation
    ● IMMO ECU Regeneration/ Coding
    ● BMW FEM/ BDC Key Programming and ECU Adaptation
    ● Volkswagen/ Audi Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost, etc.

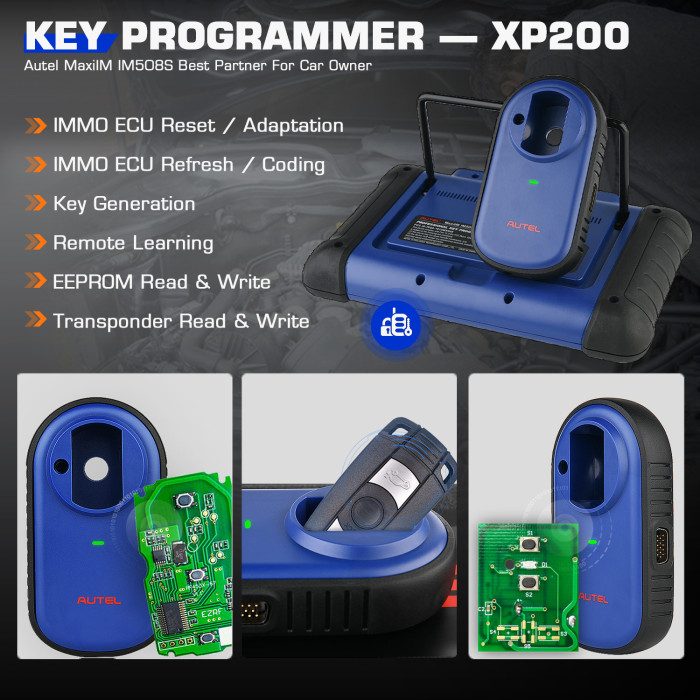

    XP200 Key Programmer:

    The XP200 Key Programmer: The Best Partner of IM508S and Provides Smart IMMO Anti-theft Functions:
    ● Key Generation
    ● Key Programming, Add Key, All Key Lost
    ● Remote Learning
    ● EEPROM Read & Write
    ● Transponder Read & Write
    ● IMMO ECU Reset & Adaptation
    ● IMMO ECU Refresh & Coding

    Reset Service Function:


    IM508S Professional Diagnostic Scanner Can Diagnose All Car Systems:

    Oil reset: Perform reset for a new calculation of the Engine Oil Life system once changed the oil.

    EPB service:For the maintenance of the electronic braking system's safety and efficiency.

    BMS service: Evaluate the battery charge state, and register the battery replacement.

    DPF service: Works for Diesel Particulate Filter Systems with DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.

    SAS service: Helps clear the faulty steering angle sensor memories and calibrate the steering angle sensor.

    TPMS service: Display sensor IDs, input TPMS sensor replacement IDs, and test sensors.

    ABS Brake Bleeding: Get a firm brake pad after air exhaustion

    - etc.

    Bi-directional Control & Active Test:

    Bidirectional Control Can Send and Receive Information from Vehicle Control Modules. Accesses the vehicle's Subsystems and Components to Check Faults.


    All System OE-Level Diagnosis:

    IM508S Can Perform OE-Level Diagnosis on All Available Vehicle Modules Including PCM, ECM, EPS, PDM, BCM, TPM, SCCM and ABS, SRS, Engine, Transmission, Brake System and etc.


    Smart Mode + Expert Mode:

    IM508S Provides Smart Mode and Expert Mode to Guide Both Peoples Performing IMMO-related Functions, Including Key Learning, Remote Control Learning, Remote Control Add, All Key Lost and etc.

    ● Smart Mode: Allows Car Owners Doing Automated Key Learning with Smart Guide.

    ● Expert Mode: Allows Professionals to Customize Each Module to Choose the Nest Solution.



    Operating System

    Android 11.0


    Rockchip RK3566 Quad-core Processor:4x 1.8GHz(A55)


    4GB RAM + 64GB ROM


    7-inch LCD Capacitive Touchscreen with 1024x600 Resolution


    - Mini USB 2.0
    - USB2.0
    - Wi-Fi
    - Micro SD Card Slot(Supports Up to 64GB)


    Ambient Light Sensor for Brightness Auto Changing

    Power and Battery

    3.7 V/ 5000 mAh Lithium-polymer Battery
    Charges via 5 VDC Power Supply

    Battery Charging Input

    5V/ 1.5A

    Power Consumption

    5000 mA (LCD on with Default Brightness, Wi-Fi on)@3.7 V

    Net Weight

    885g (2.31|b.)

    Supported Automotive Protocols

    ISO9141-2, ISO14230-2, ISO15765, K/ L-Line, Flashing Code, SAE-J1850

    VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed

    and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,

    UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
