2023 AUTEL MaxiIM IM608 PRO II Automotive All-In-One Key Programming Tool Support All Key Lost

2023 AUTEL MaxiIM IM608 PRO II (IM608S II) Automotive All-In-One Key Programming Tool Support All Key Lost No IP Limitation

Autel MaxiIM IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Highlights:

1. Autel MaxiIM IM608 II = IM608 PRO II

2. No IP Limitation: You Can Use it All Around the World without Limitation

3. One Year Free Update Online (After One Year, IM608 II Software Subscription Cost $795/Year)

4. Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration

5. Smart Mode and Expert Mode Solution In One Tool to Easy Operation with Ambient Light Sensor – detects ambient brightness.

6. Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)

7. Works for 85% Cars In The Wordwide, for BMW, for BENZ, for VW, for AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop

8. Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly

IM608 II vs IM608

1. IM608/Pro II has improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.

2. Supports CAN protocol read and write without a password

3. Add bulit-in DoIP and CAN FD protocol (don't need converter)

4. Support remote expert function

Main Features

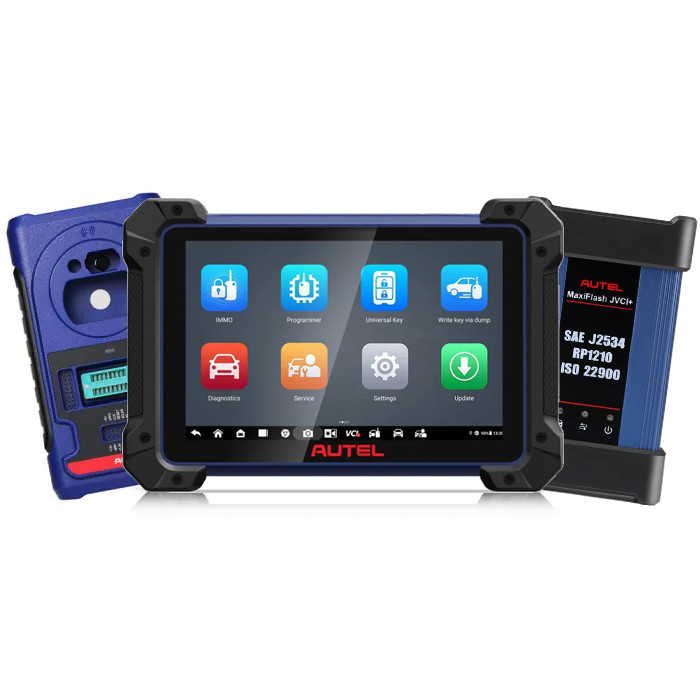

IMMO & Key Programming Bundle

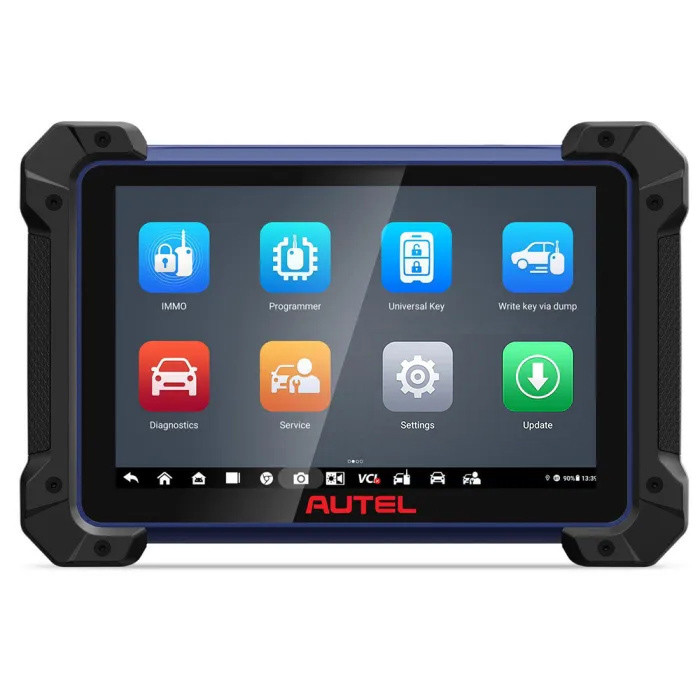

MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet

Program IMMO & Keys for U.S., Asian and European Vehicles

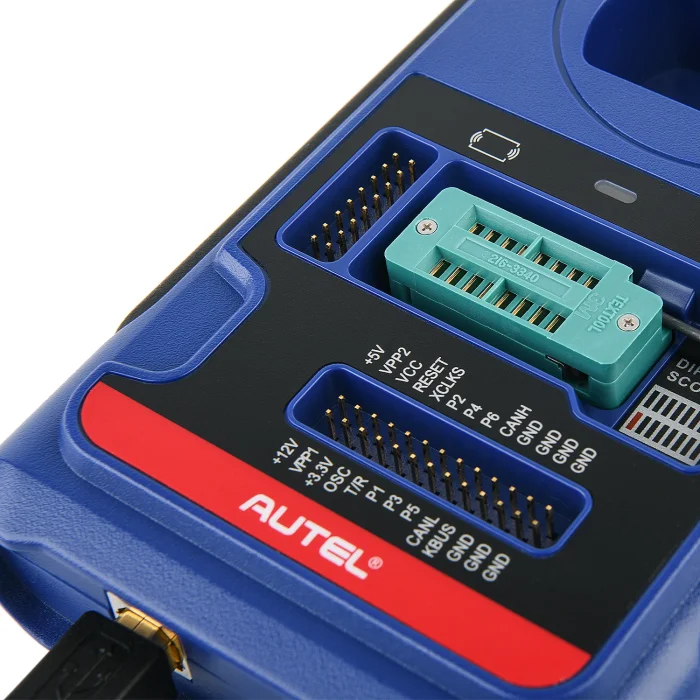

XP400Pro Key and Chip Programmer

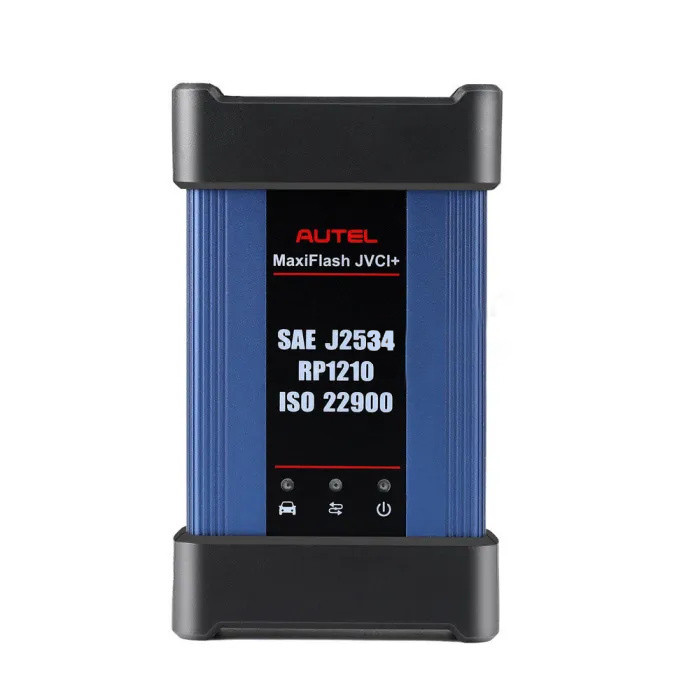

JVCI Wireless J2534 Pass Thru Programming Device

Bi-directional Control/ Active Tests

AUTEL IM608 II Supported Functions :

1. IMMO Functions

Auto Detect Make/Model/Year/System

Read PIN (All Key Lost)

Key Learning

IMMO ECU Reset/Adaption

IMMO ECU Refresh/Coding

Remote Learning

AUDI Q5/A4/A5 2015-2017 Key Learning

VW MQB Key Learning

BMW FEM/BDC Key Learning and Adaption

BMW CAS4 Key Learning and Adaption

Mercedes Key Learning

2015-2018 Land Rover & Jaguar write key via dump

Volvo Smart Key Learning/knob-style smart key

Advanced Programming Functions

EEPROM Read/Write

MCU Read/Write

Key Programming

Mercedes Key Read/Write

Remote Frequency Detect

OE-Level Diagnoses

2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

Oil Service Reset

Parking Brake Pad Relearn After Replacement

Steering Angle Sensor Relearn

Battery Registration and Reset

Diesel Particulate Filter Regeneration

Tire Pressure Monitoring System

Active Test

ECU Coding

VW/Audi Component Protection

Complete Service Functions

XP400 Pro adds support for following Chips:

EEPROM-->AMD-->AM29FXXX series chip

EEPROM--> FUJITSU-->MB29FXXX series chip

EEPROM-->ST-->M29FXXX series chip

Engine control module-->SIMTEC76(AM29F800BB) write

IMMO-->B-E-N-Z-->ESL_W209_W906 (Motorola) read/write/erase function

IMMO-->B-M-W-->EWS3 module read/write function

REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for the following adapter board:

APB113 PCF79XX adapter board

APB114 EWS3 adapter board

APB115 NEC Adapter board

APB118 NEC ELV adapter board

APB119 TB28FXXX adapter board

APB120 TMS370 adapter board

APB121 AM29FXXX adapter board

APB122 AM29FXXX adapter board 1

APB123 AM29FXXX adapter board 2

APB126 M35080/D80 adapter board

APB127 MC68HC0(7)05BXX adapter board

APB128 MC68HC05X32 adapter board

Advanced Key Programming Functions:

Exclusive Smart Mode to guide Key Programming

Auto Read IMMO Data via OBD

One-tap Key Programming via OBD & Easy-to-use Remote Programming

With the newly upgraded key programmer XP400 Pro

Extensive Vehicle & Functionality Coverage

Support Diagnostics & IMMO Programming for 10,000+ Models;

Support Models Up to 2020;

All System Diagnostics and Advanced Maintenance Services;

For Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;

For BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;

For Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;

For GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;

For Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;

For Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;

For FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;

For Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020

For Jaguar LandRover -- Add Key / All Key Lost up to 2019

For Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump

Comparison Between Autel IM608 II and IM608 Pro

Product Model	/	IM608 II	IM608 Pro
Accessories	VCI	JVCI+	JVCI
	Programmer	XP400Pro	XP400Pro
Hardware Configuration	CPU	Qualcomm SDM660 Octa-core Processor 4x 2.2 GHz(A73) 4x 1.8 GHz(A53)	Samsung Exynos T5260 6-Core Processor: 4x 1.3 GHz(A7) 2x 1.7 GHz(A15)
	OS	Android 10.0	Android™ 4.4.2, KitKat
	Memory	4 GBRAM+128GB FLASH	2 GBRAM+64GB FLASH
	Display	10.1 inches	10.1 inches
	Resolution	1920*1200	1920*1200
	Battery	3.8V 15000 mAh	3.8V 15000 mAh
	BT	BT V5.0 + BR/EDR	BT V2.1 + EDR
	DoIP	Yes	Adapter required
	CANFD	Yes	Adapter required
diagnostic function	Basic functions	Full Function	Full Function
	Coding	Yes	Yes
	Programming	Mercedes-Benz BMW system	Mercedes-Benz BMW system
IMMO Functions	Matching device	Full Function	Full Function
	Programmer	EEPROM reading and writing, MCU reading and writing	EEPROM reading and writing, MCU reading and writing
	Key tool	Yes	Yes
Remote expert	/	Yes	No

Package Includes:

1pc x IM608 II Tablet

1pc x XP400 Pro Key Programmer

1pc x JVCI+ ECU Reprogrammer

1pc x Carry Case

1pc x Main Cable

1pc x USB Cable (2m)

1pc x Connect Cable

1pc x Mini USB Cable

1pc x AC/DC Adapter (12V)

1pc x AAC001

1pc x APC101 (USB Cable)

1pc x APB129 (EEPROM Adapter)

1pc x APB125 (Mercedes Infrared Collector)

1pc x APB104 (MCU_FQFP64)

1pc x APB105 (MCU_FQFP80)

1pc x APB106 (MCU_FQFP112)

1pc x APB107 (MCU_FQFP144)

1pc x APB108 (MCU_FQFP176)

1pc x APB109

1pc x APA002 (EEPROM Socket)

1pc x APA101 (Signal Cable)

1pc x APA103 (EEPROM Clamp)

1pc x APA107 (ECU Clamp)

1pc x APA108 (MCU Clamp)

1pc x APA109 (MC9S12 Clamp)

1pc x USB to Ethernet Adapter

1pc x Packing list

1pc x Quick reference guide
