Home>Key Programmer>Car key Programmer>KTM200 ECU programmer Full-featured support for motorcycles, trucks, agricultural machinery, yachts and cars
KTM200 ECU programmer Full-featured support for motorcycles, trucks, agricultural machinery, yachts and cars

KTM200 ECU programmer Full-featured support for motorcycles, trucks, agricultural machinery, yachts and cars

US$ 567.00
Stock ( 62 )

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
KTM200 ECU programmer Full-featured support for motorcycles, trucks, agricultural machinery, yachts and cars
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Product Name: KTM200 ECU programmer Full-featured support for motorcycles, trucks, agricultural machinery, yachts and cars
    • Item NO.: KTM200-B
    • Weight: 3.23 kg = 7.1209 lb = 113.9349 oz
    • Volume: 3350 CBM
    • Category: Key Programmer > Car key Programmer
    • Creation Time: 2022-08-30
    • KT200M ECU programmer Full-featured support for motorcycles, trucks, agricultural machinery, yachts and cars

    2022 KTM200 ECU Programmer Support OBD/BOOT/BDM/JTAG Multiple Protocols Full Version

    KTM200 ECU programmer supports ECU maintenance chip tuning, DTC code removal, OBD/BOOT/BDM/JTAG, and multiple protocols. The hardware of  KT200 ECU programmer is Master version.

    Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
    The master is a personal version of the device, which can be used freely after purchase. You can obtain our company's service software ECUHELP for free. All functions on the software are free to use. The software provides ECU model query, wiring diagram search, virtual data download, DEMO download, and free software library. And Data modifier number change expert software.



    KTM200 Master Full Version Highlights:

    1. KTM200 Master Full Version with 10 licenses: Supports Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear modules
    2. Support Checksum Calculation
    3. Multi-language: English, Italian, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian and Turkish
    4. Free Update Online, No Annual Subsription
    5. Additional TCU package available for Automatic Transmissions for free
    6. Get free VR files in ECUhelp V3.0 Software
    7. Fully read and write TCU (Micro+EEPROM), TCU Clone and TCU Coding
    8. Operation System: Windows 7, Windows 8/8.1, Windows 10, Windows 11, CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB

    Notice:
    1. KTM200 Software Free Download
    2. KTM200 needs to work online which connects to our server, no lock issue.
    3. KTM200 cannot support DCM7.1 now, it will support after the coming update.

    Product Function:

    Support OBD/BOOT/BDM/JTAG
    ECU programmer multiple protocols KT200
    Covering a full range of German, ECU Programmer
    Japanese, American and Chinese models
    EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
    The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
    Support Volkswagen Audi clone(local operation without sending data to manufacturers)
    ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.


    Read and write ECU data, and the data can be used for ECU services.

    What is the ECU service?
    ECU service includes 2 major items:

    1. Chip tuning.
    Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data,  Stage 2 data, and  Stage 3 data.

    2. ECU maintenance.
    ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal

    Professional software for reading and programming the control units of:

    CAR
    TRUCK
    MOTORBIKE
    TRACTOR
    BOAT
    Additional TCU package available for Automatic Transmissions

    Full Read And Write Via Pin Out in Bench Mode:
    BOSCH EDC7
    BOSCH EDC16
    BOSCH ME9/MED9

    Full Read And Write Via Pinout in Bench Mode:
    BOSCH MD1
    BOSCH MG1
    -FREESCALESPC5777
    -AURIXTC29x
    -STSPC58

    Full Read And Write Via Pinout in Bench Mode:
    BOSCH EDC17
    BOSCH MED17/ME17
    SIEMEN SPCR2.1
    (Unlocking also possible via pinout)

    Full System Via Pin Out (Micro/Flash+EEPROM)of ECUs:
    BOSCH
    CONTINENTAL
    DELCO
    DENSO
    MARELLI
    SIEMENS
    TEMIC
    TEMIC

    BDM EJTAG Modes For:
    BDM MPC55x
    BDM MPC56x
    BDM MC32/ZC32
    BDM HC12/S12x
    JTAG NEXUS MPC/SPC56xx
    JTAG NEXUS MPC55xx

    JTAG RENESAS
    SH7055
    SH7058
    SH7059
    SH7251
    SH72543
    SH72544
    JTAG NEC76F00xx
    76F0038AGD
    76F0038GD
    76F0039AGD
    76F0039GD
    76F0040GD
    76F0070
    76F0070
    76F0085

    BOOT Modes:
    -BOOT MODEC16729Fxxx
    -BOOT MODE ST K-LINE/RX-TX/CAN
    ST10F168
    ST10F269
    ST10F273
    ST10F275
    ST10F276
    ST10F276
    ST10F280
    ST10F296
     -BOOT Mode Tricore for micro
    TC1724
    TC1728
    TC1738
    TC1738
    TC1762
    TC1766
    TC1767
    TC1782
    TC1791
    TC1792
    TC1793
    TC1793
    TC1796
    TC1797
    -BOOT Mode Renesas
    SH7052
    SH7054
    SH7055
    SH7055
    SH7058
    SH7059
    SH7251
    SH72543
    SH72544
    -BOOT Mode Mitsubishi
    MH7202
    MH7203
    MH8102F
    MH8105F
    MH8106F
    MH8202
    MH8206F
    MH8301F
    MH8301F
    MH8304F
    MH8405F
    -BOOT BAM System MOTOROLA
    SPC5674
    SPC5777
    -BOOT MODE Fujitsu
    -BOOT MODE Hitachi

    Additional Package For Automatic Transmission
    Full Read And Write TCU(MICRO+EEPROM)
    TCU CLONING
    TCU CODING FUNCTIONS

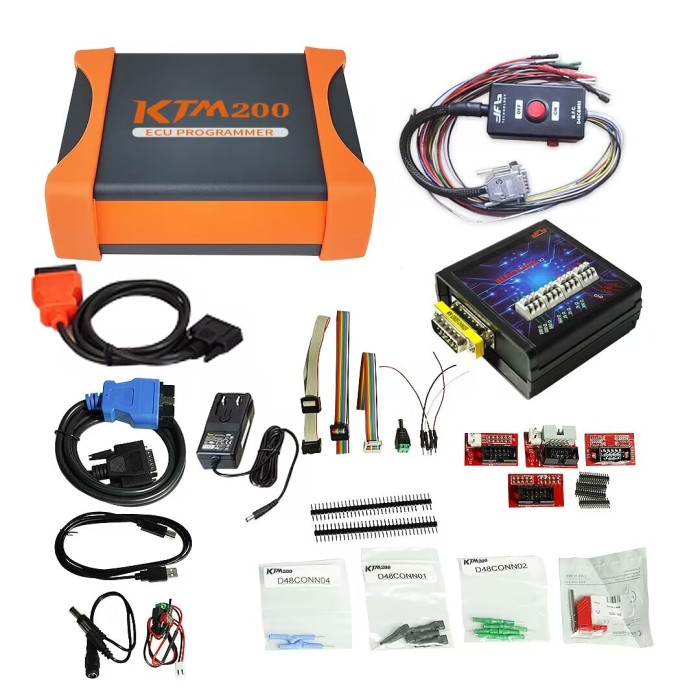

    Package Includes:

    1pc x Master,
    1pc x BENCH box,
    2pcs x OBD wires,
    1pc x pinout line,
    4pcs x BOM adapters,
    3pcs x Transfer cables,
    4pcs x Power wire,
    1pc x Set of resistors,
    4pcs x Adapter plugs,
    5pcs x Power adapters
