OBDII Voltage connnector bridges pins for vw, audi,toyota,mitsubishi remote programming Matching keys
-
- Product Name: OBDII Voltage connnector bridges pins for vw, audi,toyota,mitsubishi remote programming Matching keys
- Item NO.: Programmer-55
- Weight: 0.5 kg = 1.1023 lb = 17.6370 oz
- Volume: 180 CBM
- Category: Key Programmer > Car key Programmer
- Creation Time: 2022-05-23
- OBDII Voltage connnector
- bridges pins for vw, audi,toyota,mitsubishi remote programming
- Matching keys
OBDII Voltage connnector
bridges pins for vw, audi,toyota,mitsubishi remote programming
Matching keys

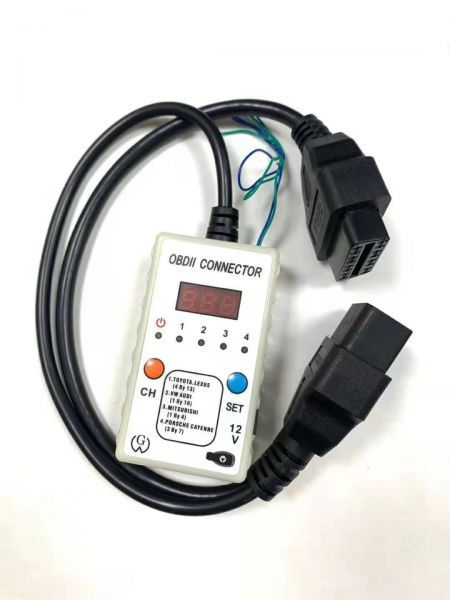

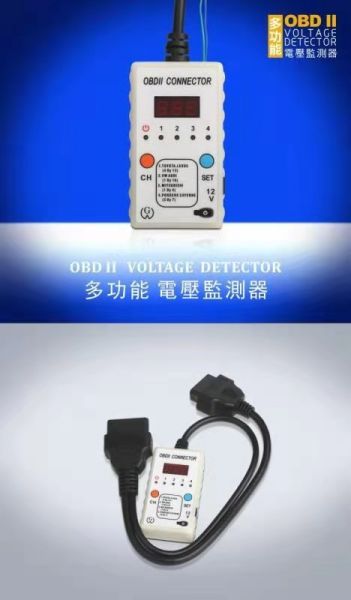

OBDII Voltage connnector
bridges pins for vw, audi,toyota,mitsubishi remote programming
Matching keys, or diagnosing a computer module, or failing to communicate, also requires a short-circuit to wake up the computer
1.This OBD Connector can display battery voltage and its status,This will avoid low
battery voltage from causing key programming failures and damages to vehicle
electronic systems.
2.Bridges Pin-4 by Pin-13 for Toyota ECU and Immobilizer synchronization.
3.Bridges Pin-1 by Pin16 for VW, Audi ECU wake-up via OBDII for programming Smart
Key all keyslost.
4.Bridges OBD PIN-1 by Pin-4 for Mitsubishi remote programming.
5.Bridges Pin-3 by Pin-7 for classic Porsche Cayenne key programming via OBDII.
6.Provides CAN-Hand CAN-L for Audi A6L lost key
OBD sync. data collecting via OBD II port.
CAN L ( Blue wire for CAN-L)
CAN H (Green wire for CAN-H)
7.Displays OBD II voltage and flashes when voltage is below 1 1 volts.
8.Provide alternative 12 volts via cigarette port or external 12 volts battery to OBD II
port for key programming or other applications.
9.Provide 12 volts from cigarette port to external devices such diagnostic/programming
tablets via OBD II connector.
