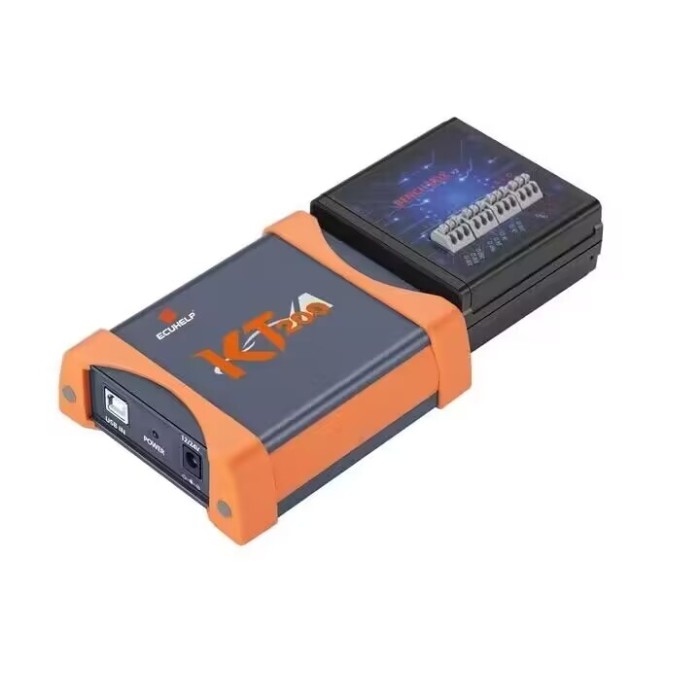

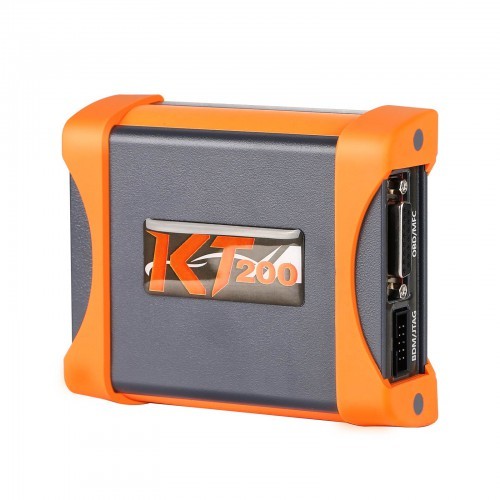

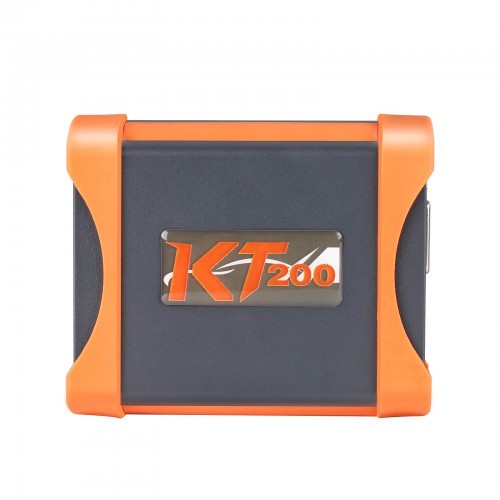

KT200 ECU programmer Basic configuration The car version only supports cars

KT200 ECU programmer Basic configuration The car version only supports cars

US$ 423.00
version
basic verion only for car key programmer Full function version for car and motorcycle
Stock ( 209 )

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
KT200 ECU programmer Basic configuration The car version only supports cars
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Product Name: KT200 ECU programmer Basic configuration The car version only supports cars
    • Item NO.: kt200-A
    • Weight: 3.23 kg = 7.1209 lb = 113.9349 oz
    • Volume: 2500 CBM
    • Category: Key Programmer > Motorcycle key programmer
    • Creation Time: 2022-08-30
    • KT200 ECU programmer Basic configuration The car version only supports cars


     How to install KT200 software?   the link is       https://youtu.be/2PTo0y3iZMs

    KT200 ECU Programmer Master Auto Version Support ECU Maintenance Chip Tuning DTC Code Removal OBD/BOOT/BDM/JTAG Multiple Protocols


    Highlights:


    1. KT200 Has 2 Versions:
    Auto Version: Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear. This one is auto version, now can pay $250 and update to full version with the serial number.
    Full VersionCar OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear
    2. Support Checksum Calculation
    3. Multi-language: English, Italian, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
    4. Free Update Online No Annual Subsription
    5. Additional TCU package available for Automatic Transmissions for free
    6. Get free VR files and Damaos files
    7. Operation System: Windows 7, Windows 8/8.1, Windows 10, Windows 11, CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB
    8. KT200 is same as KTM200/ECUTuner
    9. KT200 Software Free Download

    Notice:
    1. KT200 needs to work online, it connects to our server, no lock issue.
    2. KT200 cannot support DCM7.1 now, it will support after the update soon.

    KT200 ECU List
    KT200 TCU List
    KT200 User Manual

    KT200
    Product Function:



    Support OBD/BOOT/BDM/JTAG
    ECU programmer multiple protocols KT200
    Covering a full range of German, ECU Programmer
    Japanese, American and Chinese models
    EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
    The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
    Support Volkswagen Audi clone(local operation without sending data to manufacturers)
    ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.

    KT200 ECU Programmer

    Read and write ECU data, and the data can be used for ECU services.

    What is the ECU service?
    ECU service includes 2 major items:

    1. Chip tuning.
    Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data,  Stage 2 data, and  Stage 3 data.

    2. ECU maintenance.
    ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal

    KT200 ECU Programmer

    KT200 Auto version includes 7 licenses:

    Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear

    Professional software for reading and programming the control units of car and truck

    Additional TCU package available for Automatic Transmissions.

    Full Read And Write Via Pin Out in Bench Mode:
    BOSCH EDC7
    BOSCH EDC16
    BOSCH ME9/MED9

    Full Read And Write Via Pinout in Bench Mode:
    BOSCH MD1
    BOSCH MG1
    -FREESCALESPC5777
    -AURIXTC29x
    -STSPC58

    Full Read And Write Via Pinout in Bench Mode:
    BOSCH EDC17
    BOSCH MED17/ME17
    SIEMEN SPCR2.1
    (Unlocking also possible via pinout)

    Full System Via Pin Out (Micro/Flash+EEPROM)of ECUs:
    BOSCH
    CONTINENTAL
    DELCO
    DENSO
    MARELLI
    SIEMENS
    TEMIC
    TEMIC

    BDM EJTAG Modes For:
    BDM MPC55x
    BDM MPC56x
    BDM MC32/ZC32
    BDM HC12/S12x
    JTAG NEXUS MPC/SPC56xx
    JTAG NEXUS MPC55xx

    JTAG RENESAS
    SH7055
    SH7058
    SH7059
    SH7251
    SH72543
    SH72544
    JTAG NEC76F00xx
    76F0038AGD
    76F0038GD
    76F0039AGD
    76F0039GD
    76F0040GD
    76F0070
    76F0070
    76F0085

    BOOT Modes:
    -BOOT MODEC16729Fxxx
    -BOOT MODE ST K-LINE/RX-TX/CAN
    ST10F168
    ST10F269
    ST10F273
    ST10F275
    ST10F276
    ST10F276
    ST10F280
    ST10F296
     -BOOT Mode Tricore for micro
    TC1724
    TC1728
    TC1738
    TC1738
    TC1762
    TC1766
    TC1767
    TC1782
    TC1791
    TC1792
    TC1793
    TC1793
    TC1796
    TC1797
    -BOOT Mode Renesas
    SH7052
    SH7054
    SH7055
    SH7055
    SH7058
    SH7059
    SH7251
    SH72543
    SH72544
    -BOOT Mode Mitsubishi
    MH7202
    MH7203
    MH8102F
    MH8105F
    MH8106F
    MH8202
    MH8206F
    MH8301F
    MH8301F
    MH8304F
    MH8405F
    -BOOT BAM System MOTOROLA
    SPC5674
    SPC5777
    -BOOT MODE Fujitsu
    -BOOT MODE Hitachi

    Additional Package For Automatic Transmission

    Full Read And Write TCU(MICRO+EEPROM)
    TCU CLONING
    TCU CODING FUNCTIONS

    KT200 ECU Programmer

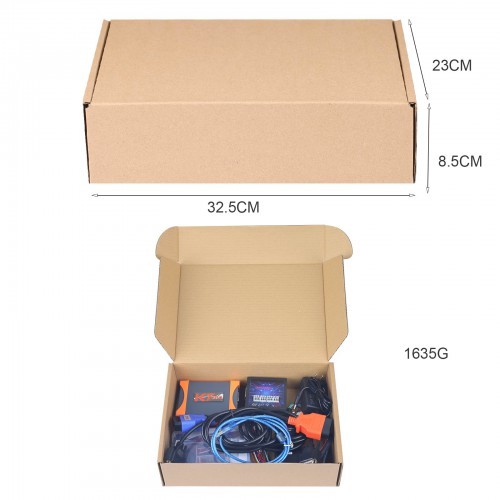

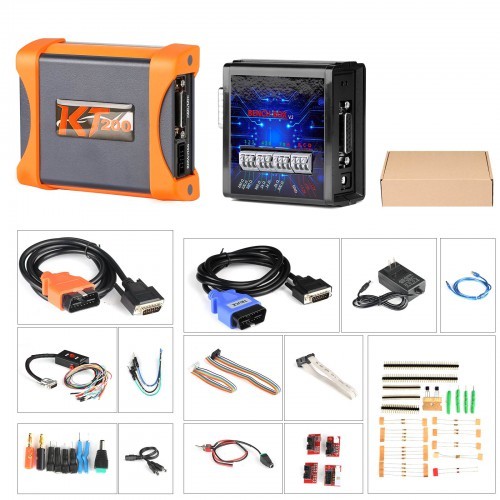

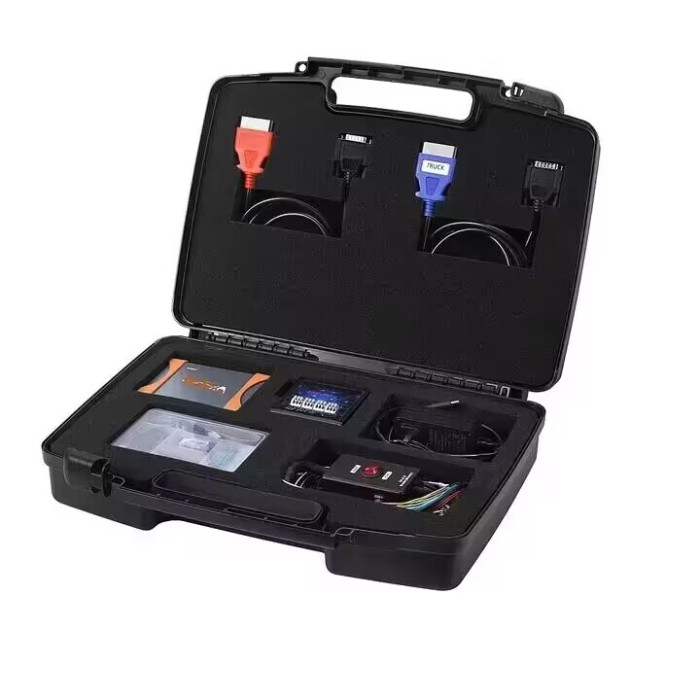

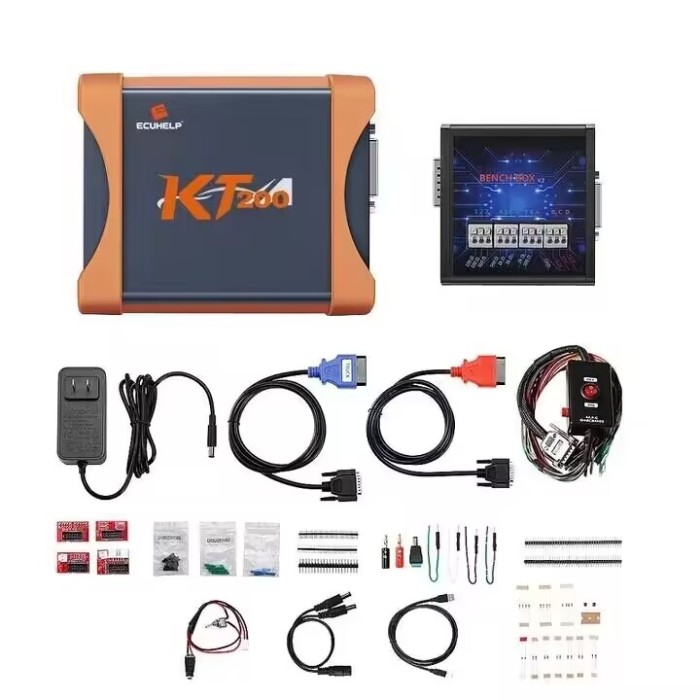

    Package Includes:

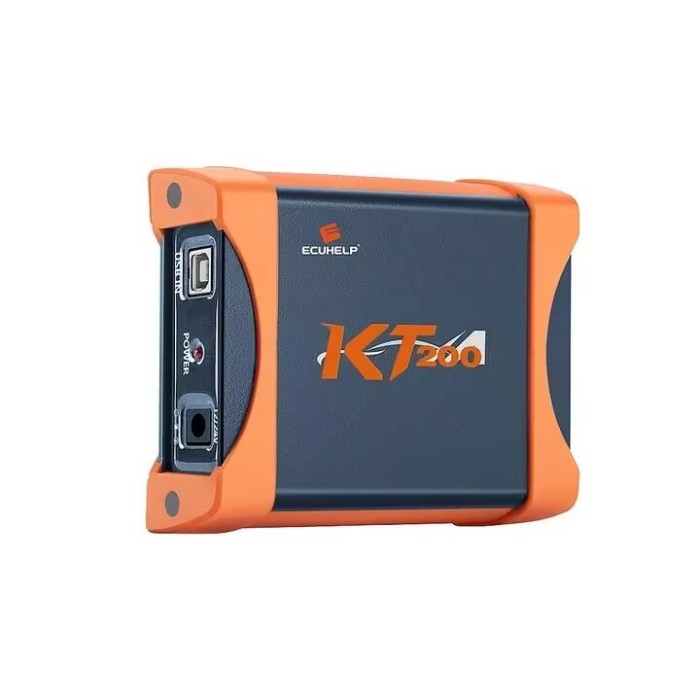

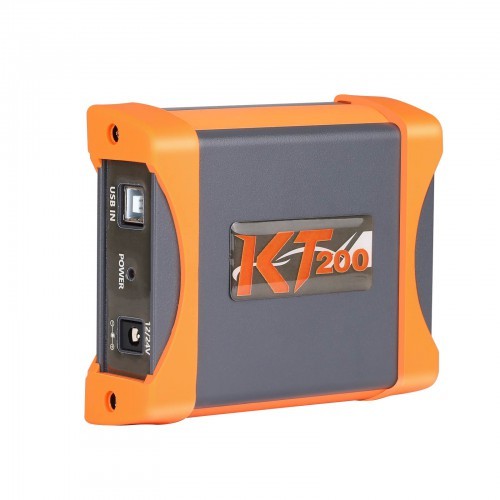

    1pc x Master,

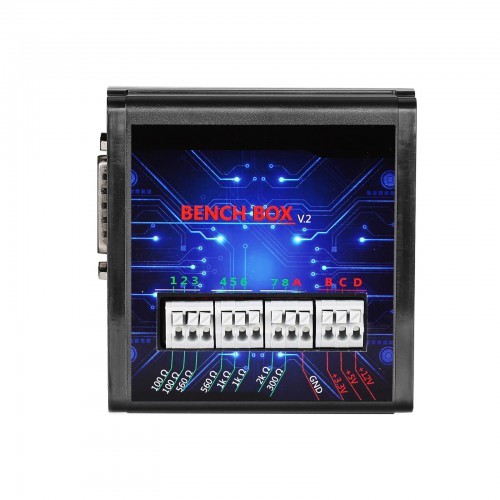

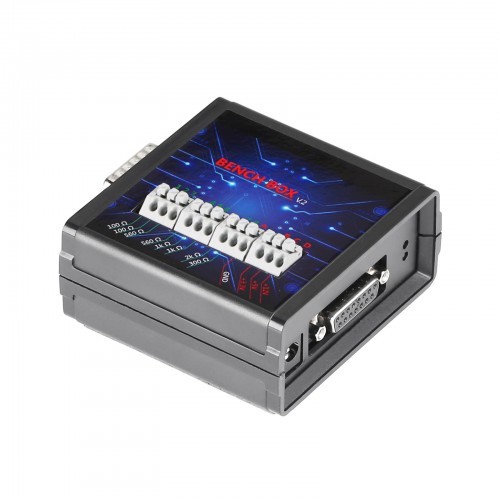

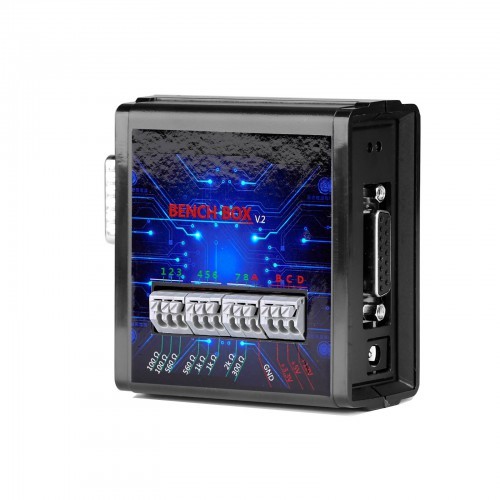

    1pc x BENCH box,
    2pcs x OBD wires,
    1pc x pinout line,
    4pcs x BOM adapters,
    3pcs x Transfer cables,
    4pcs x Power wire,
    1pc x Set of resistors,
    4pcs x Adapter plugs,
    5pcs x Power adapters
    KT200 ECU Programmer
