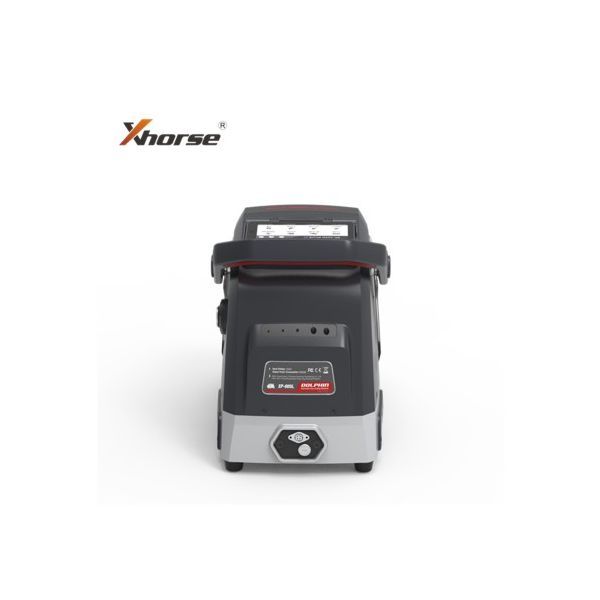

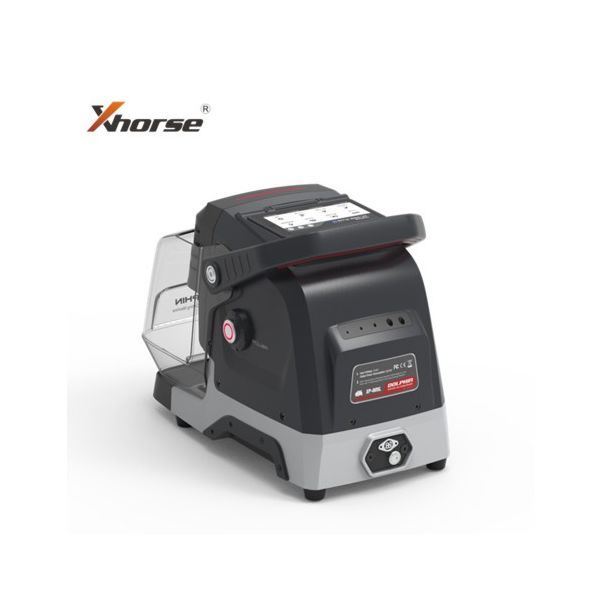

Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen

Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen

US$ 2146.00
Stock ( 5 )

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen

    Product Description

    1. Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen and Protective Cover
    2. Smart LED indicator, Angle adjustable LCD touch screen
    3. M5 Clamp, no need to repeated install and uninstall to replace clamps
    Xhorse Dolphin II XP-005L Key Cutting Machine


    Xhorse XP-005L Features:
    • Buit-in database
    • Support APP Control
    • Intelligent operating system
    • Smart LED indicator
    • Angle adjustable LCD touch screen
    • Support WiFi and Bluetooth
    • All-aluminum body structure
    • High precision ball screw
    • High rigidity cross rail
    • Cutter and probe work in parallel
    • Support Multiple Clamps
    • Support Sided/Track/Tibbe Key
    • Update online: Machine firmware and database upgrade via WiFl directly

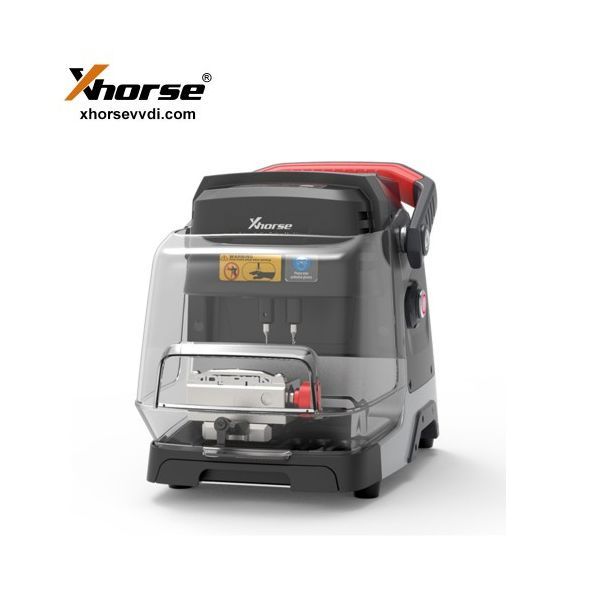

    A newly-added transparent protective cover can be moved freely to witness the key cutting process clearly at all times, and the working status is clear at a glance.
    Prevent key debris from splashing around, combining cleanliness and safety.
    The workbench is upgraded and lengthened, the working space is expanded and optimized, the stability is enhanced, and the multi-directional safety protection brings you more security.

    Xhorse dolphin ii

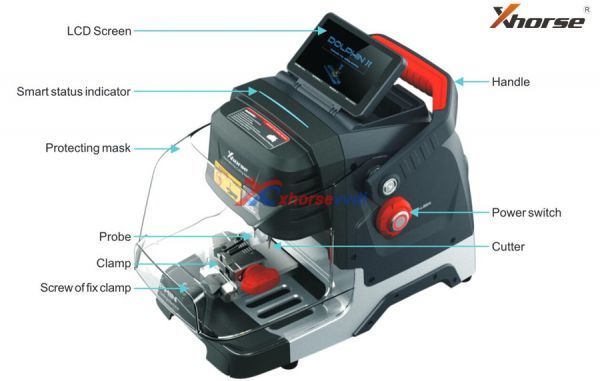

    Xhorse XP005L Structure:


    xhorse dolphin xp-005l

    Xhorse Dolphin ii Software overview
    Supporting self-calibration
    Supporting key duplication and cutting for vehicle keys
    Supporting universal key decode for multiple key types
    Operation on APP through Bluetooth

    Xhorse Dolphin XP-005L Clamp:

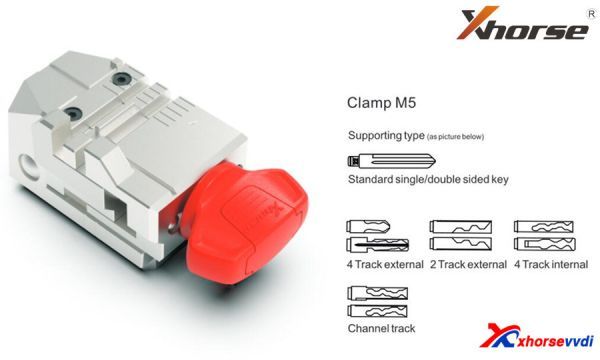

    1. M5 Clamp
    xhorse dolphin ii

    M5 clamp with two sides of A and B. Users can turn the clamp surface to cut according to cutting needs, it's no need to repeated install and uninstall to replace clamps. Here are the method of using the M5 clamp.
    1) Loosen the "key lock knob" counter clockwise to make the right slider of the clamp the right limit
    2) Turn the movable module clockwise, and turn the clamp from side a to side B. Tighten the key lock knob" clockwise to lock the clamp.

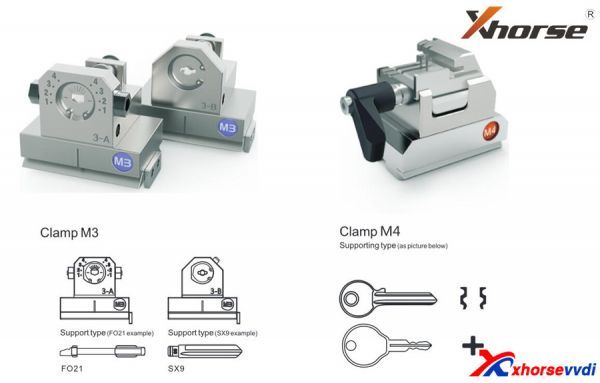

    2. Optional M3, M4 Clamp (You need buy separately)
    xhorse dolphin ii


    Xhorse Dolphin XP-005 L Highlights
    HD Touch Screen
    Users can directly complete operation on the screen. High definition screen minimizes eye fatigue.
    The machine adopts an angle-adjustable 5-inch capacitive touch screen. You can set the angle of the screen based on actual needs.

    Innovative Colorful Indicator Lights
    The indicator light changes color with the change of real-time working status.
    dolphin xp-005l

    Massive Vehicle Database
    Built-in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data. Accurate key data, detailed parameters, and clear key graphics. We provide a lifelong database upgrade service for free!

    Portable Solution
    Thanks to its compact design, lightweight, much easier to take it outside and provide users outdoor and roadside services.
    Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.

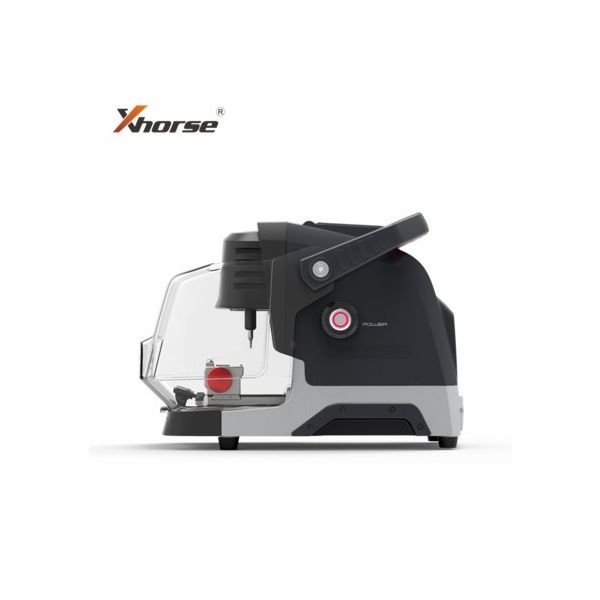

    Transparent Protective Shield
    The transparent shield enables users to check the real-time working status while preventing metal debris from spattering.
    XHORSE DOLPHIN II

    Manufacture Craftsmanship
    All-aluminum body structure; Manufactured by German-made DMG CNC machine to guarantee high precision cutting results. The finished keys passed the rigorous testing of the Optical Instrument.
    A wider workbench, strong and steady, make your works more productive.
    Maintain excellent performance even under extreme weather.

    Multi-purpose Clamps
    A wide duplication availability guaranteed by a variety of functional clamps, support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track internal, F021 & Citroen SX9 keys, residential keys, etc.

    Support Bluetooth and WiFi
    Support directly upgrade online via WiFi connection.
    Control the machine by the Xhorse APP on your smartphone or other intelligent terminals via Bluetooth.

    Dolphin XP-005L Specification:
    Input voltage: 24V DC
    Power: 160W
    Principal axis rotation speed: 12500rpm
    Motor Torque: 0.15Nm
    LCD resolution: 1280*720
    Working temperature: 10-50°C
    Humidity: 10-90%
    Machine size: 390mm:220mm*270mm
    Package size: 495mm*400mm*360mm
    Net weight: 13kg
    Gross weight: 18.5kg

    Xhorse Dolphin XP-005L Vs Dolphin XP-005
    Item
    Xhorse Dolphin XP005L
    Xhorse Dolphin XP-005
    Xhorse Dolphin XP005L
    Xhorse Dolphin XP-005
    Screen
    An angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen.LCD resolution 1280*720.
    Null
    Bluetooth
    Yes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetooth
    Yes,use smart cellphone or tablett to download APP via Bluetooth.
    Wifi
    Yes, directly upgrade online via wifi connection
    Null
    Protecting mask
    Yes, prevent metal debris from spattering.
    Null
    Smart status indicator
    Yes (in blue, yellow, red color)
    Null
    Multiple Clamps
    Standard equipped M5 clamp (M1 and M2 2 in 1), optional M1/M2 Clamp, M3 Clamp, M4 Clamp.
    Support clamps M1, M2, M3(optional) and M4 (optional)
    Hexagon bar wrench
    2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench
    2mm hexagon bar wrench,  4mm hexagon bar wrench
    Weight
    Net weight 13KG, Gross weight 18.5KG
    Net weight 15KG, Gross weight 18KG
    Language
    English, Spanish, French, Polish, Italian, Portuguese, etc
    English, Spanish, French, Polish, Italian, Portuguese, etc
    Update online
    Machine firmware and database upgrade via Wifi directly
    Online software update on APP, update through Xhorse"Upgrade Kit".
    Key database
    Yes, same as XP005
    Yes
    Function
    Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types.
    Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types.


    Xhorse Dolphin XP005L Package List:
    1pc x Condor Dolphin IIMachine Body
    1pc x M5 Clamp for Single/Double sided, Channel-track keys
    1pc x 1.5mm Cutter
    1pc x 2.5mm Cutter
    1pc x 1.0mm Probe
    1pc x Power cord
    1pc x Power Supply Adapter
    1pc x Brush



    If you have any questions, please do not hesitate to contact us.
