Home>Remote Key>For Benz>XNBZ01 Xhorse FBS3 unkeyless
XNBZ01 Xhorse FBS3 unkeyless

XNBZ01 Xhorse FBS3 unkeyless

US$ 14.00
Button
3 button 4 button
Tokens
with tokens no tokens
frequency
315mhz 434mhz
Stock ( 79999890 )

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
XNBZ01 Xhorse FBS3 unkeyless
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Product Name: XNBZ01 Xhorse FBS3 unkeyless
    • Item NO.: For Benz-R10A3
    • Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
    • Volume: 66 CBM
    • Category: Remote Key > For Benz
    • Creation Time: 2022-05-23

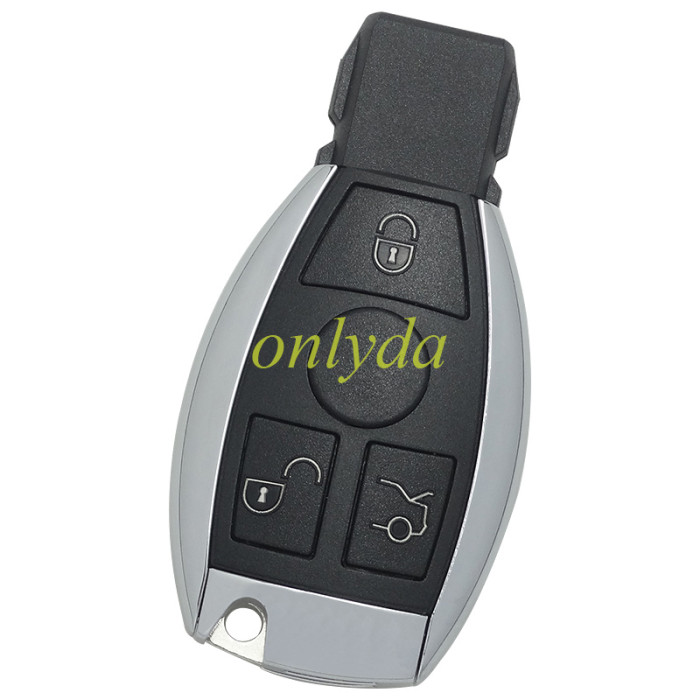

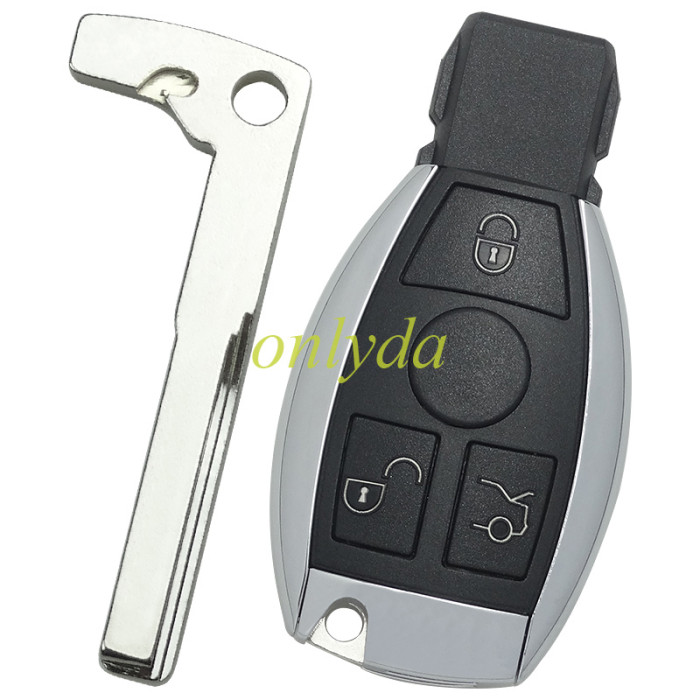

    • For XNBZ01Xhorse VVDI FBS3 BE.BGA,NEC Key Pro Improved Version Mercedes-Benz 3 button remote key with 434mhz

    Xhorse VVDI BE Key Pro Improved Version

    for Mercedes-Benz 3 button remote key with 434mhz


    for Vehicles models

    705 Moto(1997-2000)

    NEC(2001-2005)

    NEC(2006-2010)

    BGA(after 2011)



    Xhorse VVDI BE Key Pro Features:


    More compatibility

    New design

    High Stability

    High reliability

    Digital Signature


    VVDI BE key Pro improvements:
    1-Fix the bug that W164/W639 EIS data doesn't synchronize the key.
    2-Fix the bug/fault that the BE key stop work after repeatedly turn ON the ignition without remove key out from EIS/EZS for example with work on diagnostic...switch IGN OFF---ON for erase faults...then car not start
    3-Fix the bug/fault of trunk remote open on cars where power lifts on trunk door mainly...
    4-Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
    5-Modify the rolling algorithm, fix some errors of BE key.
    6-Add pre-roll algorithm: the HASH value can roll ahead.
    7-Adopt car-grade quartz crystal, improve infrared communication stability.
    8-Boost the infrared signal when you press the button.
    9-Support resetting the key frequency between 315MHz and 433.92MHz in the way of VVDI MB tool or the PCB SMD resistor

    Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.

    The way to reset the frequency with the PCB SMD resistor:
    Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHz, after remove it will be 433.92MHz.


    How to Change Xhorse VVDI BE Key Pro For Benz PCB Frequency?

    XHORSE VVDI BE Key Pro For Benz XNBZ01CH Remote Key Chip Improved Version default frequency is 315MHZ,

    it supported to change frequency to 433mhz. Here we will introduce two ways to change Xhorse For Benz Key PCB frequency.

    Method 1.Remove PCB FRE resistor change to 433MHZ.

    Method 2.Change Via VVDI MB Tool Software.You can use VVDI MB software check key frequency firstly in EIS Software,other function set frequency.Then it shows 315mhz when you read frequency.Choose 433mhz to set,and check frequency again.

    Method
